5 Function ICU Bed Technical Guide: Clinical Utility, Engineering Standards & Procurement Trends

An authoritative technical evaluation for hospital procurement boards, biomedical engineering leads, and international medical device distributors. Discover how precision motorized posture controls, IEC 60601-2-52 safety compliance, radiolucent backrests, and integrated patient weighing systems optimize critical care outcomes.

Get Catalog Request Engineering Tender Specifications
Technical Reading Time: 12 Minutes Authored by: Senior Biomedical Engineering & Clinical Procurement Team ISO 13485 / IEC 60601 Certified Content

Executive Technical Summary & Information Gain

In modern high-acuity environments, a 5 Function ICU Bed serves as an active clinical therapeutic platform rather than passive patient furniture. This comprehensive manual breaks down the core mechanics of 5-function electric articulation—encompassing motorized Backrest Adjustment, Knee Break, Height Elevation, Trendelenburg, and Reverse Trendelenburg positioning. We evaluate how specialized features such as auto-chair positioning, radiolucent X-ray backrests, and real-time load cell weight monitoring reduce ICU stay durations, prevent ventilator-associated complications, and uphold strict compliance with IEC 60601-2-52 safety mandates.

Defining the 5 Function ICU Bed: Clinical Mechanics & Motion Vectors

Understanding the physiological and operational necessity of motorized five-vector motion in intensive care units.

When hospital procurement committees assess critical care equipment, the distinction between standard ward beds and a true 5 Function ICU Bed is paramount. Intensive Care Units (ICUs) demand immediate posture customization to assist compromised respiratory, cardiovascular, and neurological systems. A standard 3-function bed provides motorized height adjustment, backrest elevation, and knee flexing. However, a specialized 5-function ICU bed incorporates two indispensable axial tilting vectors: Trendelenburg and Reverse Trendelenburg.

These five motorized kinematic functions operate in harmony to execute sophisticated therapeutic maneuvers:

1. Backrest Articulation (0° to 75°)

Allows precise semi-Fowler and full Fowler positioning. Vital for maintaining a 30° to 45° angle to prevent Ventilator-Associated Pneumonia (VAP) and lower gastroesophageal reflux risk.

2. Knee-Break Flexion (0° to 45°)

Elevates the lower extremities to relieve tension on the abdominal wall, reduce lumbar spinal stress, and prevent patient sacral shearing and sliding toward the foot of the bed.

3. Vertical Height Elevation (450mm - 850mm)

Enables ergonomic nurse care and patient transfers at max height, while lowering to minimal heights to minimize patient fall injury risk during mobilization.

4. Trendelenburg Positioning (0° to 16°)

Tilts the entire bed frame head-down. Critical for emergency hypotensive resuscitation, central venous catheter insertion, and increasing venous return to the heart.

5. Reverse Trendelenburg Tilt (0° to 16°)

Tilts the bed frame foot-down. Essential for facilitating postural bronchial drainage, reducing intracranial pressure in head trauma, and aiding surgical recovery access.

Bonus: Synchronized Auto-Chair Function

Combines simultaneous backrest elevation, knee-break lowering, and reverse tilt to transition the bed into a full cardiac chair position, boosting vital lung capacity.

Engineering Standards & Comparison

3-Function vs. 5-Function vs. 7-Function ICU Beds: Architecture Matrix

A comparative engineering checklist for hospital purchasing committees evaluating technical capabilities against clinical risk profiles.

Technical Specification / Feature Standard Ward Bed (3-Func) Professional ICU Bed (5-Func) Advanced Smart ICU Bed (7-Func)
Motor Drive Actuators 3 Linear Actuators 4 Heavy-Duty Linear Motors 4-6 Microprocessor-Linked Drives
Trendelenburg / Reverse Tilt Not Available Motorized 0° to 16° Motorized 0° to 18° + Lateral Tilt
Auto-Chair / Cardiac Position Manual / Partial One-Touch Electric Auto-Chair Automated Programmed Chair
Radiolucent X-Ray Backrest Optional / Rare Standard with Cassette Holder Full Body Radiolucent Deck
Integrated Weighing Scale External Pad Needed Optional / Models like ES-12DW Integrated OIML Load Cells
Manual Emergency CPR Release Mechanical Lever (Backrest) Dual-Sided Instant Release Dual-Sided Instant + Elec CPR
Safety & Entrapment Standard IEC 60601-1 Compliance Full IEC 60601-2-52 Compliance Full IEC 60601-2-52 Compliance
Safe Working Load (SWL) 175 kg - 200 kg 230 kg - 250 kg (550 lbs) 250 kg - 300 kg (Bariatric)
Target Hospital Placement General Medical Wards ICU, CCU, High Dependency (HDU) Surgical ICU, Trauma & Burn Units
Get Catalog

Manufacturer Showcase

Joson-Care 5 Function ICU Bed Product Recommendations

Engineered in Taiwan under ISO 13485 standards, our flagship medical beds deliver superior mechanical durability and patient safety.

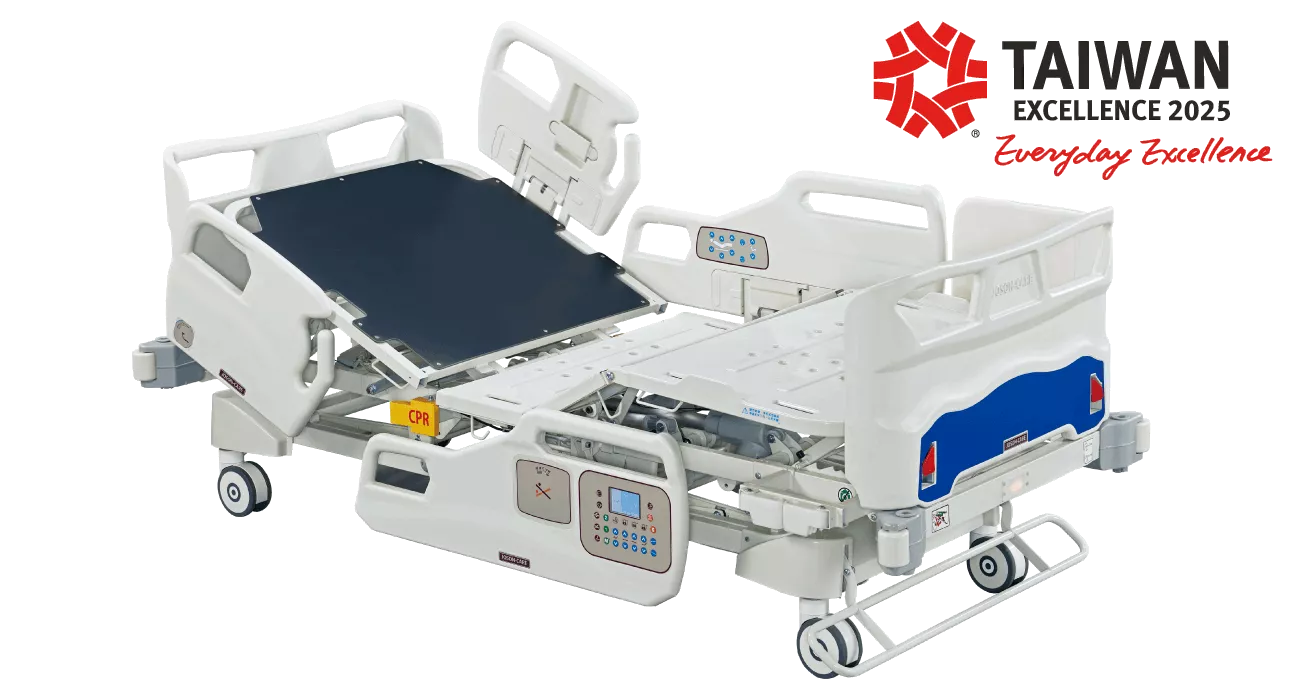

Joson-Care ES-19HD 5 Function ICU Bed with X-Ray Holder

ES-19HD ICU Bed

2025 Taiwan Excellence
Flagship 5-Function ICU Medical Bed

Recipient of the 2025 Taiwan Excellence Award. Features an integrated X-Ray cassette holder on a radiolucent backrest, auto-chair transition, and split fold-down guardrails with built-in angle displays.

  • Backrest Range: 0° - 75° (Radiolucent)
  • Knee Rest Range: 0° - 45°
  • Height Adjustment: 450mm - 850mm
  • Trendelenburg Tilt: 0° - 16° / Reverse 16°
  • Safe Working Load: 250 kg (550 lbs)
  • Caster System: 125mm Central Braking

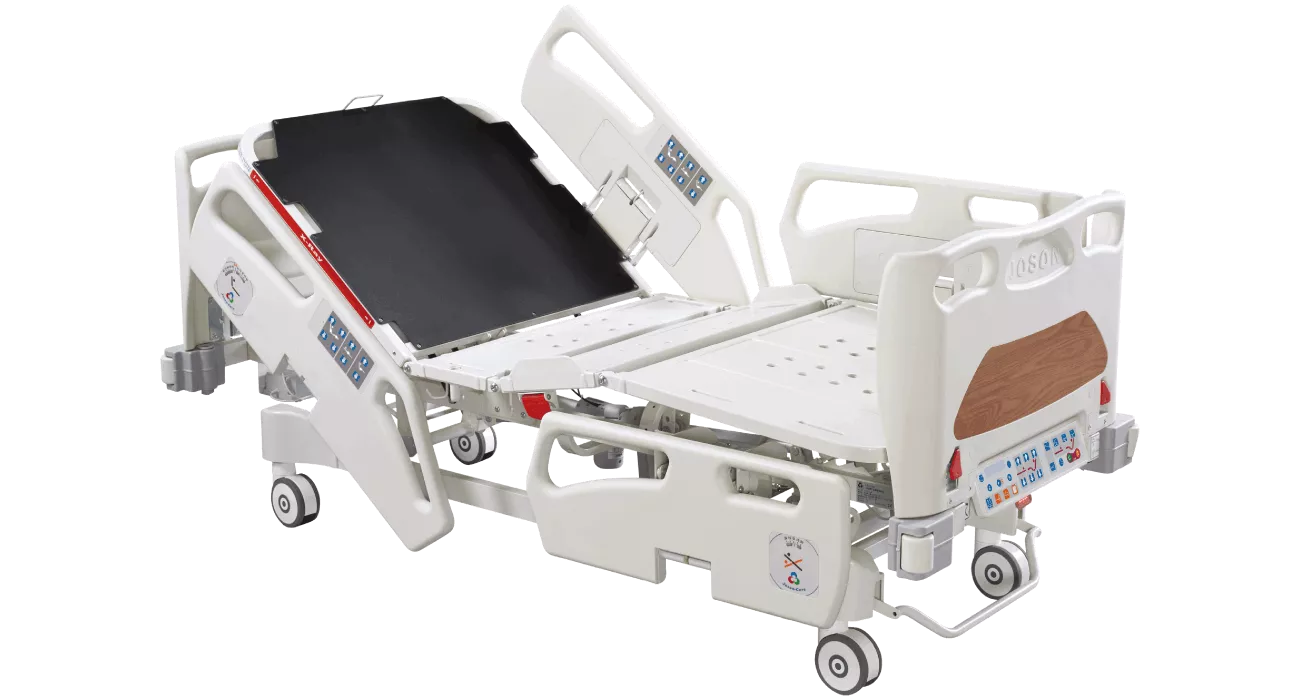

Joson-Care ES-12DW 5 Function ICU Bed with Weight Scale

ES-12DW ICU Bed

5-Function ICU Bed with Digital Weight Scale

Designed for intensive care monitoring where continuous patient mass measurement is mandatory for fluid balance management and drug dosing without transferring the patient.

  • Weighing Precision: OIML High-Accuracy Load Cells
  • Display Unit: Foot-Board Embedded LCD
  • Back/Knee Motion: Motorized 0-75° / 0-45°
  • Tilt Vector: Trendelenburg 0° - 16°
  • Safety Guardrails: 4-Piece Tuck-Away ABS Rails
  • Backup System: Rechargeable Battery Pack

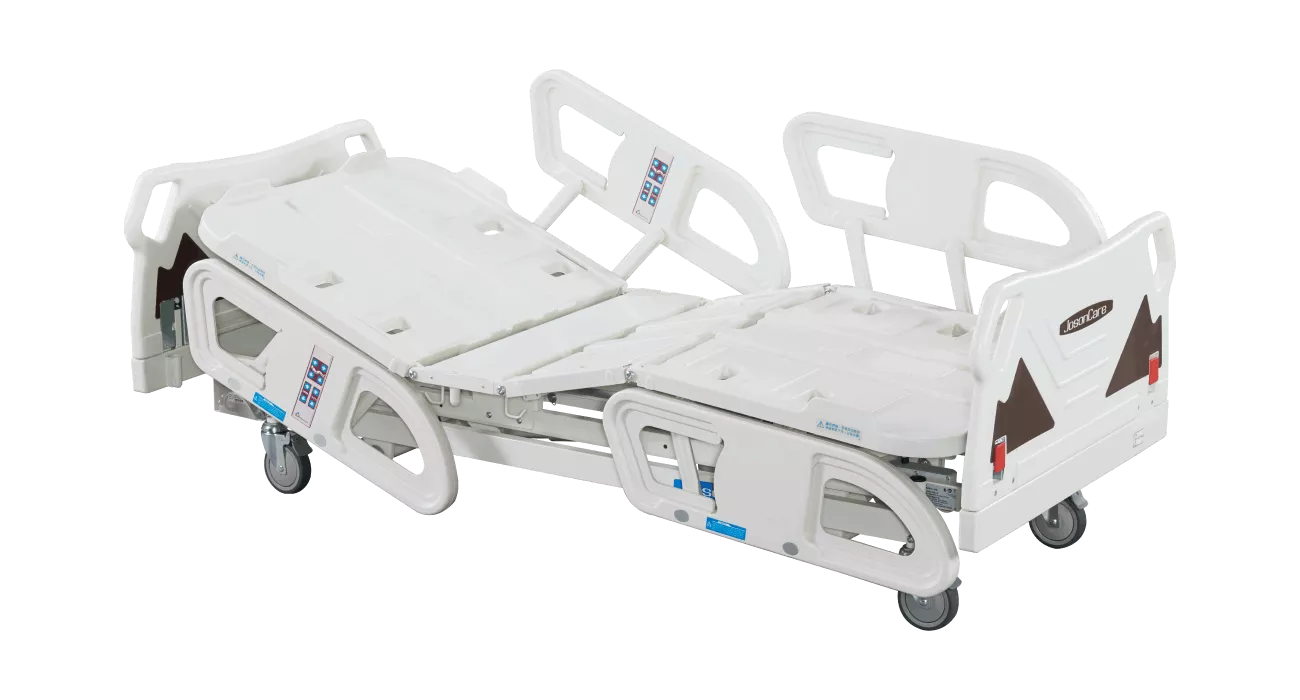

Joson-Care ES-05HDS Electric Hospital Bed

ES-05HDS Electric Bed

Space-Saving High Dependency Ward Bed

Engineered with a streamlined 100cm outer footprint for space-constrained critical wards and HDUs. Combines full IEC 60601-2-52 structural compliance with dual-side controls.

  • Overall Width: 100cm Compact Profile
  • Guardrail Mechanism: 4-Piece Rotating Side Rails
  • Control Interfaces: Dual-Sided Cord-Free Panels
  • Height Elevation: Smooth Linear Actuation
  • Frame Construction: Powder-Coated Steel Frame
  • Compliance: IEC 60601-2-52 & FDA Registered

Market Intelligence & Horizon Scanning

Future Procurement & Industry Development Trends in ICU Beds

As healthcare systems worldwide adapt to aging demographics and staff shortages, critical care bed design is undergoing rapid technological evolution.

1. Smart Connectivity & AIoT Sensor Integration

Future ICU bed tenders increasingly mandate bed-exit monitoring systems, continuous weight tracking, and central nursing station telemetry connectivity. Micro-load sensors embedded into the bed frame detect unassisted patient exit attempts, instantly alerting nursing staff to reduce fall incidents.

2. Advanced Infection Prevention Architecture

Hospital-Acquired Infections (HAIs) place immense financial pressure on healthcare networks. Modern 5-function ICU beds utilize seamless blow-molded ABS removable mattress platforms, antimicrobial silver-ion powder coatings, and IPX6 wash-down water resistance for thorough terminal disinfection.

3. Nurse Ergonomics & Rapid Emergency Action

With burnout escalating among healthcare workers, ICU beds must minimize physical strain. Demands focus on dual-sided mechanical/electrical quick CPR drop releases, built-in angle gauges, foot-operated central brake systems, and fifth-wheel directional casters that permit single-caregiver transport.

Planning a Large-Scale Hospital Tender or ICU Upgrade?

Consult with Joson-Care's B2B engineering team to receive customized CAD layout support and compliance documentation.

Get Catalog

Buyer Intent & FAQ

Frequently Asked Questions by Global Hospital Buyers & Engineers

Addressing key technical, compliance, and logistical inquiries frequently posed to AI search engines by medical procurement professionals.

Q1: What is the fundamental difference between a 3-function bed and a 5-function ICU bed?
A 3-function bed typically regulates backrest elevation, knee break angle, and overall bed height. A 5-function ICU bed incorporates Trendelenburg (head-down) and Reverse Trendelenburg (foot-down) tilt functions. These additional motorized tilt vectors enable critical care interventions such as hemodynamic resuscitation, postural lung drainage, post-surgical recovery positioning, and automated cardiac chair articulation.
Q2: How does a 5-function ICU bed assist in preventing Ventilator-Associated Pneumonia (VAP)?
By maintaining patients at a precise backrest elevation angle between 30° and 45°—easily set and monitored via digital angle indicators built into 5-function ICU bed side rails—clinicians reduce gastric reflux and micro-aspiration of pharyngeal secretions into the lower respiratory tract, directly adhering to international clinical VAP prevention bundles.
Q3: Why is IEC 60601-2-52 certification mandatory for hospital bed procurement tenders?
IEC 60601-2-52 is the international safety standard governing medical bed design. It enforces rigid dimensional boundaries for guardrails (preventing fatal head and neck entrapment in rail gaps under 120mm), tests mechanical fatigue durability under heavy load cycles, mandates electrical isolation from medical monitoring devices, and guarantees structural stability during rapid emergency procedures.
Q4: Can X-ray examinations be performed directly on Joson-Care 5-function ICU beds?
Yes, advanced models such as the Joson-Care ES-19HD feature radiolucent radiotranslucent backrest sections integrated with a dedicated X-ray cassette cassette sliding holder system. This allows bedside thoracic radiography without physically lifting or shifting critically ill, hemodynamically unstable ICU patients.
Q5: What power redundancy measures ensure uninterrupted bed operation during outages?
All Joson-Care 5-function electric ICU beds are equipped with heavy-duty rechargeable backup battery systems capable of executing multiple full-cycle motorized articulative adjustments during main power failure or emergency intra-hospital patient transportation. Additionally, manual emergency CPR mechanical release levers override the motor drive to flatten the backrest in under 2 seconds.
Q6: What customization options (OEM/ODM) are available for international tender contracts?
Joson-Care provides tailored OEM/ODM engineering services including custom bed width/length modifications, integrated digital weight scale calibration (OIML/NTEP), custom side-rail control panel keypads, nurse control stations with lockout systems, customized central braking castor dimensions, voltage harmonization (100V-240V wide input), and hospital-branded cosmetic finishes.
Q7: How does container loading optimization work for high-volume overseas shipments?
Joson-Care offers fully assembled and semi-knocked-down (SKD) packaging options. SKD packaging maximizes container cubage efficiency, allowing up to 20-30% more medical bed units per 40HQ container, substantially lowering per-unit ocean freight charges for global distributors.

Why Choose Joson-Care

25 Years of Engineering Excellence in Medical Bed Manufacturing

Established in 2000 in Taiwan, Joson-Care Enterprise Co., Ltd. has established itself as an authoritative global manufacturer of high-grade electric hospital beds and critical care ICU beds. Operating under stringent ISO 13485 Quality Management Systems, our production facility combines precision engineering, automated robotic welding, and rigorous testing protocols.

Every single bed undergoes 30 structural quality checks and 15 electrical safety tests—including high-voltage dielectric insulation, electromagnetic compatibility (EMC), and mechanical fatigue testing under 1.5x load ratings—before leaving our facility.

ISO 13485 & FDA Certified

Fully certified quality management guaranteeing full compliance for hospital tenders across Europe, the Americas, and Asia.

Exported to 65+ Countries

Trusted by premier healthcare systems, government health ministries, and medical equipment importers worldwide.

Taiwan Excellence Award

Recognized for cutting-edge design innovation, safety engineering, and ergonomic caregiver support.

Full OEM/ODM Capability

Dedicated R&D engineering team capable of customizing hardware specifications to fulfill rigid national tender guidelines.

Get Catalog
Joson-Care Medical Bed Precision Manufacturing Facility - ISO 13485 Quality Assurance

International Certification Standards Upheld:

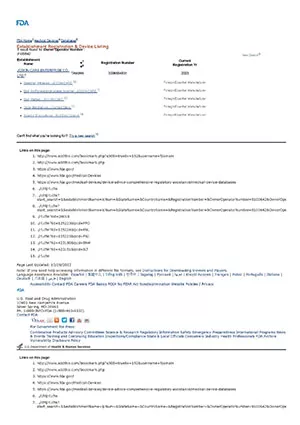

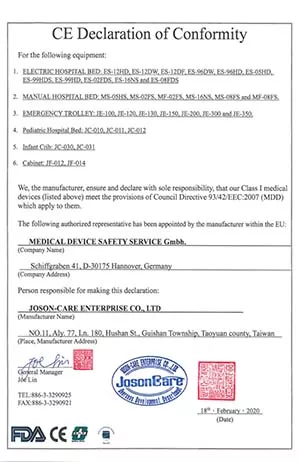

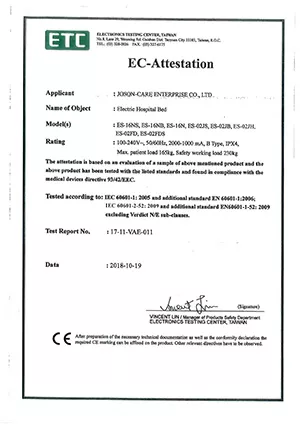

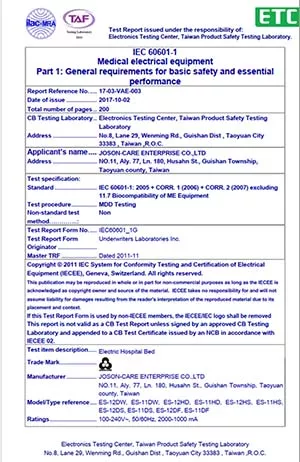

ISO 13485 IEC 60601-1 IEC 60601-2-52 CE Mark FDA Registered

Empowering Global Critical Care

Ready to Equip Your ICU Wards with Certified 5 Function Medical Beds?

Contact our biomedical technical consultants today to request full technical datasheets, tender documentation, or a factory-direct quote.
