High-Precision Orthopedic Implants & Specialized Instrument Sets
Manufactured under stringent ISO 13485:2016 cleanroom standards. Fully compatible with global AO/ASIF instrumentation trays, offering optimal biomechanical load sharing and biological fixation.
CANWELL Medical Orthopedic Instrument Set Manual Metal Torque Adapter Quick Coupling Handle Torque Limiter Ratchet Handle
CANWELL Distal Radius Dorsal Titanium Locking Plate 3 Holes Oblique Volar Wrist Orthopedic Trauma Implant Bone Fracture Class

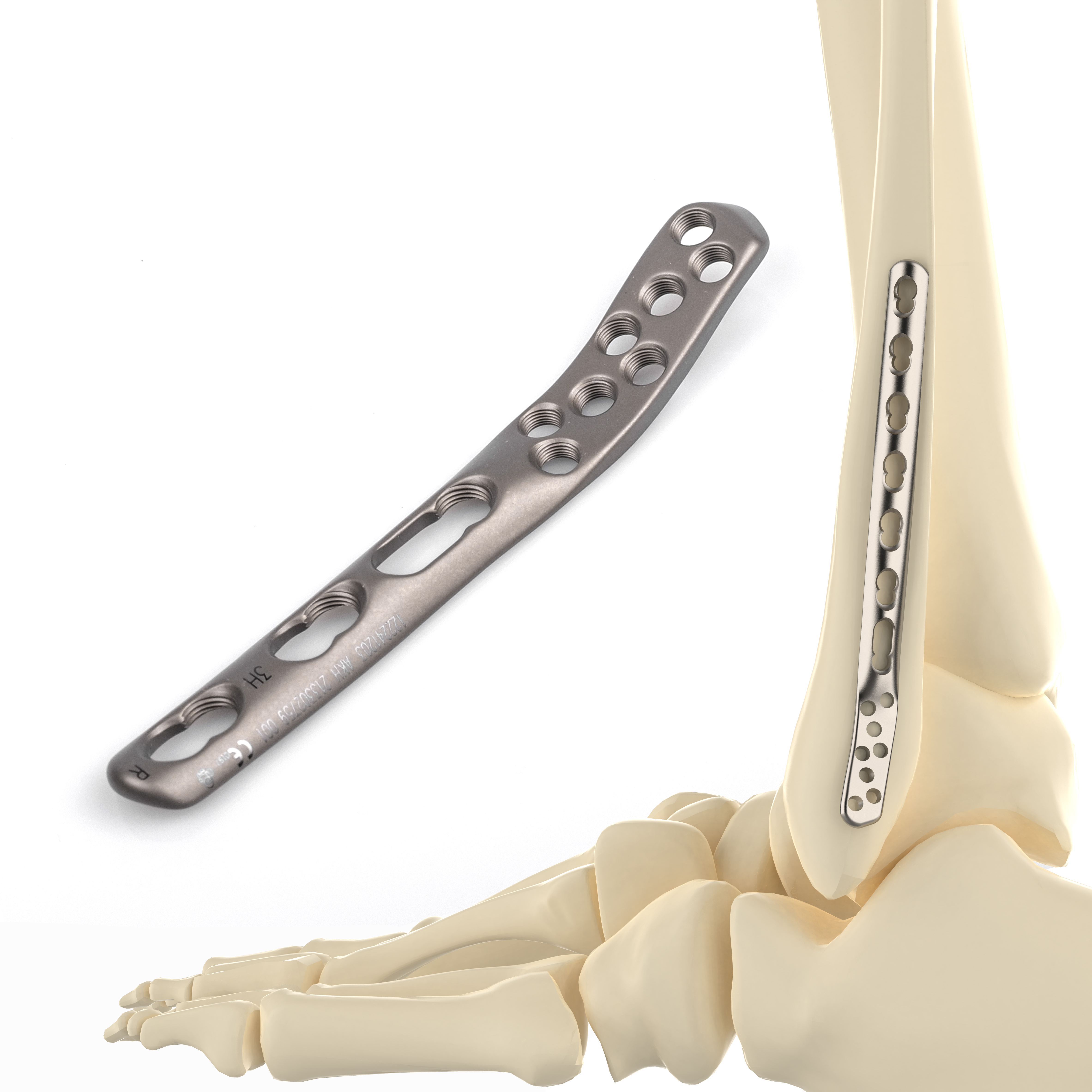

CANWELL Fibula Plate Titanium Posterolateral Distal Fibula Locking Plate 2.7/3.5mm Screw System Orthopedic Implant Manufacturer
CANWELL Titanium Tibia Locking Plate Price Factory Distal Femur Lateral Distal Femoral Outer Side Orthopedic Implant Lock Plates
CANWELL Orthopedic Flexible Reamer Set for Intramedullary Nail Surgery with Reamer Heads and Flexible Shaft OEM Supplier

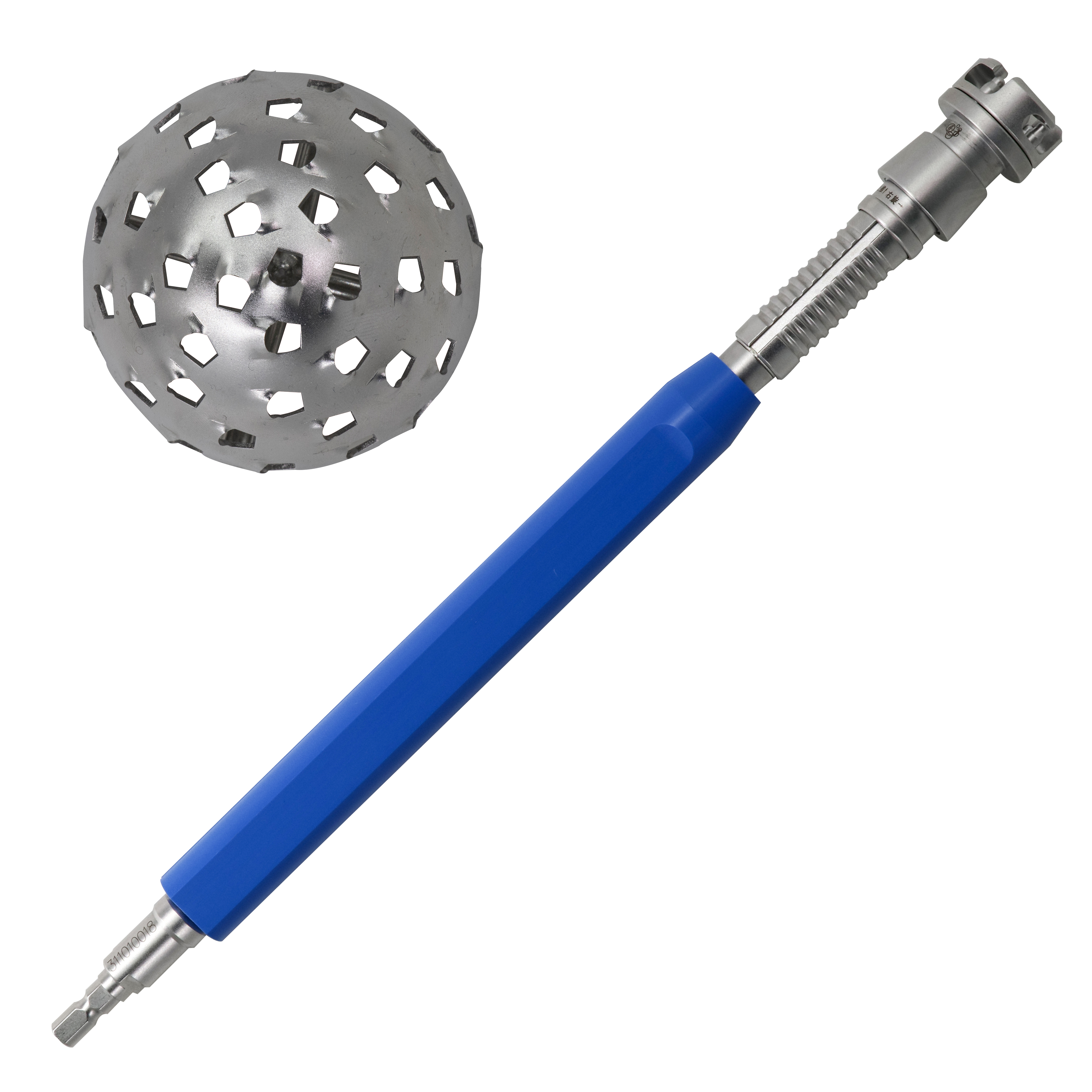

CANWELL Acetabular Reamers High Precision Hip Instrument Set Arthroplasty Total Hip Replacement Orthopedic Surgery Tools
CANWELL Sinus Tarsal Locking Screw Titanium Orthopedic Implant and Instrument Foot Ankle CE ISO Manufacturer 2.4/2.7mm Class II
CANWELL Titanium Femoral Intramedullary Nails Interlocking Nail Femur PFNA Orthopedic Trauma Implants Bone Fracture
Biomechanical Principles of Fixed-Angle Locking Compression Plates (LCP) in High-Energy Trauma
A rigorous engineering analysis on stress distribution, periosteal vascularity preservation, and metallurgical fatigue thresholds under complex physiological loading conditions.
In modern orthopedic traumatology, the clinical paradigm has transitioned decisively from rigid absolute stability achieved via high frictional compression to biological internal fixation. Conventional dynamic compression plates (DCP) rely exclusively on the friction generated between the plate undersurface and the cortical bone bone-to-plate interface. This mechanical compression inevitably disrupts the periosteal and Haversian microcirculation, causing localized cortical necrosis, delayed callus formation, and an elevated incidence of secondary osteopenia underneath the plate construct. For specialized orthopedic surgery departments in Pyongyang dealing with complex high-energy fractures, polytrauma, and osteoporotic skeletal profiles, our manufacturing methodology implements the full scope of AO/ASIF fixed-angle locking principles.
Our titanium locking plates function as internal fixators. Because the screw head threads directly into the plate eyelet, angular and axial stability does not depend on compressing the plate against bone cortex. A critical clearance of 0.5 mm to 1.5 mm is maintained above the periosteum, protecting the cambium layer and subperiosteal blood supply. Consequently, early secondary bone healing is stimulated through balanced, microscopic relative motion (elastic fixation), resulting in abundant bridge callus formation within 6 to 10 weeks post-operatively.
From a metallurgical perspective, all locking plates manufactured for export to clinical buyers in Pyongyang are milled strictly from medical-grade Ti-6Al-4V ELI (Extra Low Interstitial, ASTM F136 / ISO 5832-3). Compared to traditional 316L stainless steel, titanium alloy provides an elastic modulus (~110 GPa) that is significantly closer to human cortical bone (~18–20 GPa). This mechanical harmony curtails the dangerous phenomenon of "stress shielding," wherein an excessively stiff implant absorbs all physiological loads, causing progressive bone resorption and post-removal refracture. Furthermore, titanium exhibits superior corrosion resistance in human extracellular fluid due to the spontaneous formation of a passive, chemically inert titanium dioxide (TiO2) film, eliminating heavy metal ion leaching and systemic histiocytic responses.
Variable-Angle (VA) Locking Technology
Enables off-axis screw trajectory up to ±15° from the central nominal vector. Critical for distal radius, peri-articular distal tibia, and proximal humerus fractures where targeting non-comminuted bone fragments or avoiding articular cartilage penetration is paramount.
Combi-Hole Dual Fixation Architecture
Combines a dynamic compression unit (DCU) hole with a threaded locking eyelet. Surgeons can alternate between standard cortical screw insertion for axial compression and threaded locking head insertion for angular stability within the same longitudinal plate construct.
Fatigue Limit & Finite Element Testing
Every anatomical geometry undergoes multi-axial cyclic fatigue loading exceeding 1,000,000 cycles under ASTM F382 protocols. This guarantees structural resilience against premature screw shearing or plate snapping during delayed union intervals.
Clinical Adaptation Across Pyongyang’s Tertiary Healthcare Network
Meeting the precise procedural and operational demands of municipal hospitals, specialized trauma surgical teams, and emergency clinical centers across Pyongyang.
Tertiary Hospital Trauma Wings & Emergency Surgery
Pyongyang’s key municipal and academic teaching hospitals require rapid-turnaround, standardized implant systems. Our universal instrumentation sets allow trauma teams to address comminuted femoral, tibial, and forearm fractures swiftly with minimal tray swaps during late-night emergency interventions, maximizing operating theatre productivity.
Industrial, Construction & High-Impact Trauma
With infrastructure expansion and major public construction initiatives active across Pyongyang, orthopedic units regularly treat crushing injuries, distal intra-articular fractures, and severe axial load fractures. Our heavy-duty Distal Femoral and Proximal Tibial Locking Plates provide rigid subchondral support, preventing joint depression collapses.
Severe Sub-Zero Seasonal Fractures & Elderly Osteopenia
Pyongyang experiences rigorous sub-zero winter temperatures leading to elevated incidents of slips and falls among aging demographics, generating high rates of osteoporotic distal radius, hip, and femoral neck fractures. Locking screws maintain high pull-out strength even in poor-quality cancellous bone where conventional screws fail.
Technological Modernization in Pyongyang’s Traumatology Sector
How surgical departments and medical procurement agencies in Pyongyang are modernizing fracture management standards to reduce complications and revision surgeries.
Shift from Conservative Plaster Casting to MIPO Internal Fixation
Pyongyang’s orthopedic leadership is steadily shifting from prolonged conservative traction or external skeletal fixators toward Minimally Invasive Plate Osteosynthesis (MIPO). Pre-contoured anatomical plates allow subcutaneous tunneling through tiny incisions, eliminating huge surgical exposures, minimizing soft-tissue disruption, and accelerating patient rehabilitation.
Stringent Demands for Complete Biocompatibility (Ti vs Stainless Steel)
Hospitals are systematically prioritizing titanium alloy implants over legacy 316L stainless steel. Titanium’s non-ferromagnetic nature enables safe post-operative MRI diagnostics without extensive magnetic distortion, while its high biocompatibility minimizes foreign-body tissue rejection, dramatically reducing the necessity for painful second-stage implant extraction procedures.
Autoclave Autonomy & Corrosion-Resistant Instrumentation
Given the rigorous hospital sterilization protocols in Pyongyang, surgical trays must endure recurrent, high-temperature steam autoclaving (134°C / 273°F) without pitting, tarnishing, or losing mechanical calibration. Our instrumentation is manufactured from custom-hardened martensitic stainless steel with electrolytic passivization to ensure years of corrosion-free hospital service.
Zhejiang INAR Medical — Manufacturing Scale & Capabilities
SGS-verified onsite facility providing end-to-end orthopedic manufacturing, cleanroom sterilization packaging, and international export documentation.
SGS Onsite Verified Facility
Fully audited production floors, CNC turning lines, ultrasonic cleaning lines, and Class 100,000 cleanroom facilities confirmed by independent SGS Group assessments.
International CE MDR Compliance
Our trauma plates and interlocking intramedullary nails are registered with full CE documentation under EU MDR and 93/42/EEC standards for immediate tender registration.
Direct Factory Pricing & OEM Flexibility
No trading middlemen. Complete customization of laser marking, plate bending profiles, anodized color coding, and bespoke graphic sterilization containers.
Full Regulatory Dossier Support
Complete provision of Mill Test Certificates (MTC), mechanical shear reports, bio-burden validation, and customs documentation tailored for swift importation into Pyongyang.
Frequently Asked Questions by Orthopedic Buyers & Importers for Pyongyang
Comprehensive technical and commercial responses tailored to hospital procurement officers, tender committees, and medical device distributors.
Which international quality standards and raw material certifications are supplied?
Every shipment is accompanied by a comprehensive Batch Inspection Certificate and a Mill Test Certificate (MTC) proving that all raw materials are 100% medical-grade Ti-6Al-4V ELI titanium complying with ISO 5832-3 and ASTM F136 standards. Furthermore, our production system adheres to ISO 13485:2016 quality management standards, backed by third-party SGS onsite verification.
Are your locking plates compatible with existing AO/ASIF surgical instrument sets?
Yes. Our titanium locking plates, self-tapping locking screws, and cortical compression screws are engineered with standardized thread pitches, head recesses (StarDrive / Torx / Hexagonal), and screw core dimensions. They are fully compatible with mainstream standard AO/ASIF instrument sets, drill guides, depth gauges, and torque-limiting handles already utilized in Pyongyang operating rooms.
What packaging options are available for long-distance transport and hospital storage?
We provide two packaging solutions: (1) Non-sterile bulk packaging in anti-static, sealed poly-bags nested inside shock-proof compartmentalized carton trays for hospitals with in-house autoclave capabilities; and (2) Pre-sterilized medical-grade double Tyvek peel-pouches (ISO 11607 compliant) processed with Ethylene Oxide (EO) or Gamma radiation, providing a guaranteed 5-year sterile shelf life.
Can you produce custom anatomical plates or private-label markings for tenders?
Absolutely. As a direct factory with 29,523 m² of manufacturing space, we support full OEM/ODM services. We can precision laser-etch custom batch serial numbers, Korean/English nomenclature, and institutional branding onto plates and screw caddies. Custom contours can also be manufactured based on CAD drawings or hospital CT DICOM reconstructive data.
How do you ensure torque consistency and prevent screw head stripping during surgery?
Our screws feature precision-broached Stardrive (T-series) or deep-hexagonal recesses manufactured to tight micrometric tolerances. In tandem, our instrument sets include calibrated manual torque limiters (e.g., 1.5 Nm for 3.5mm systems; 4.0 Nm for 4.5/5.0mm systems) that decouple automatically upon reaching optimal seating tightness, preventing cold-welding and screw head deformation inside the plate hole.
What are the typical lead times and logistics arrangements for shipments to Pyongyang?
Standard trauma catalog items (such as distal radius, distal femur, and 1/3 tubular plates) are maintained in constant inventory, allowing dispatch within 7 to 10 working days. Custom configurations or high-volume hospital tender orders generally require 25 to 35 manufacturing days. We coordinate all export documentation, shipping insurance, and secure freight delivery routes directly to ensure compliant logistics.
